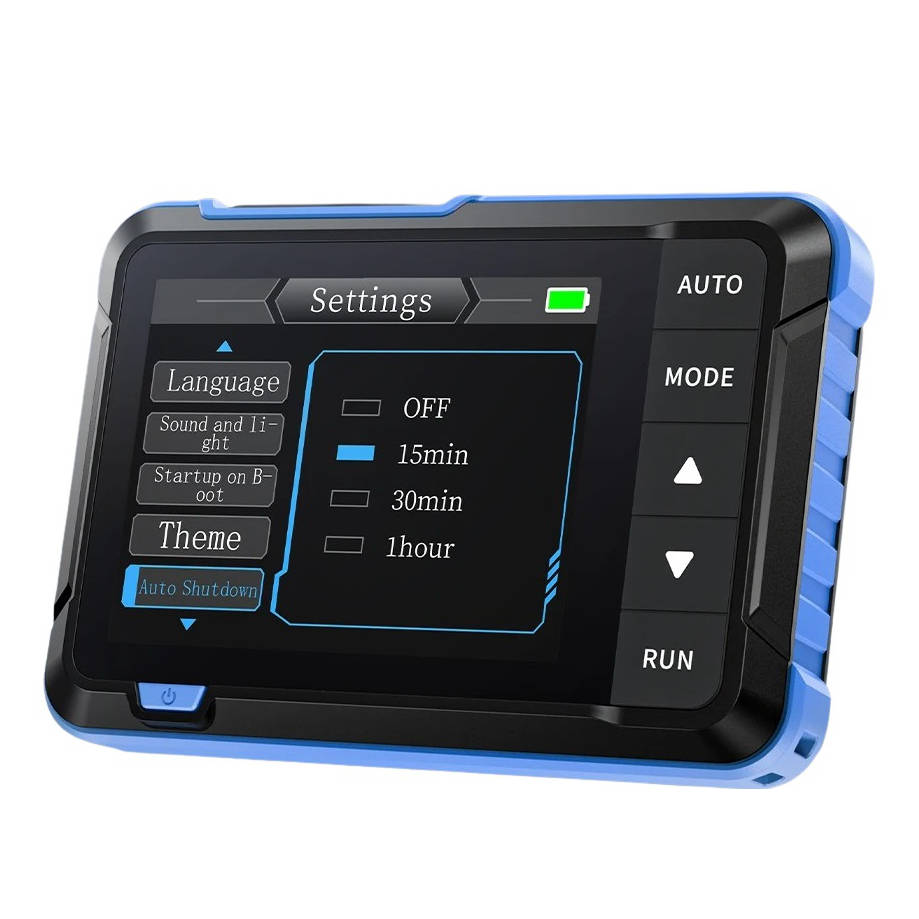

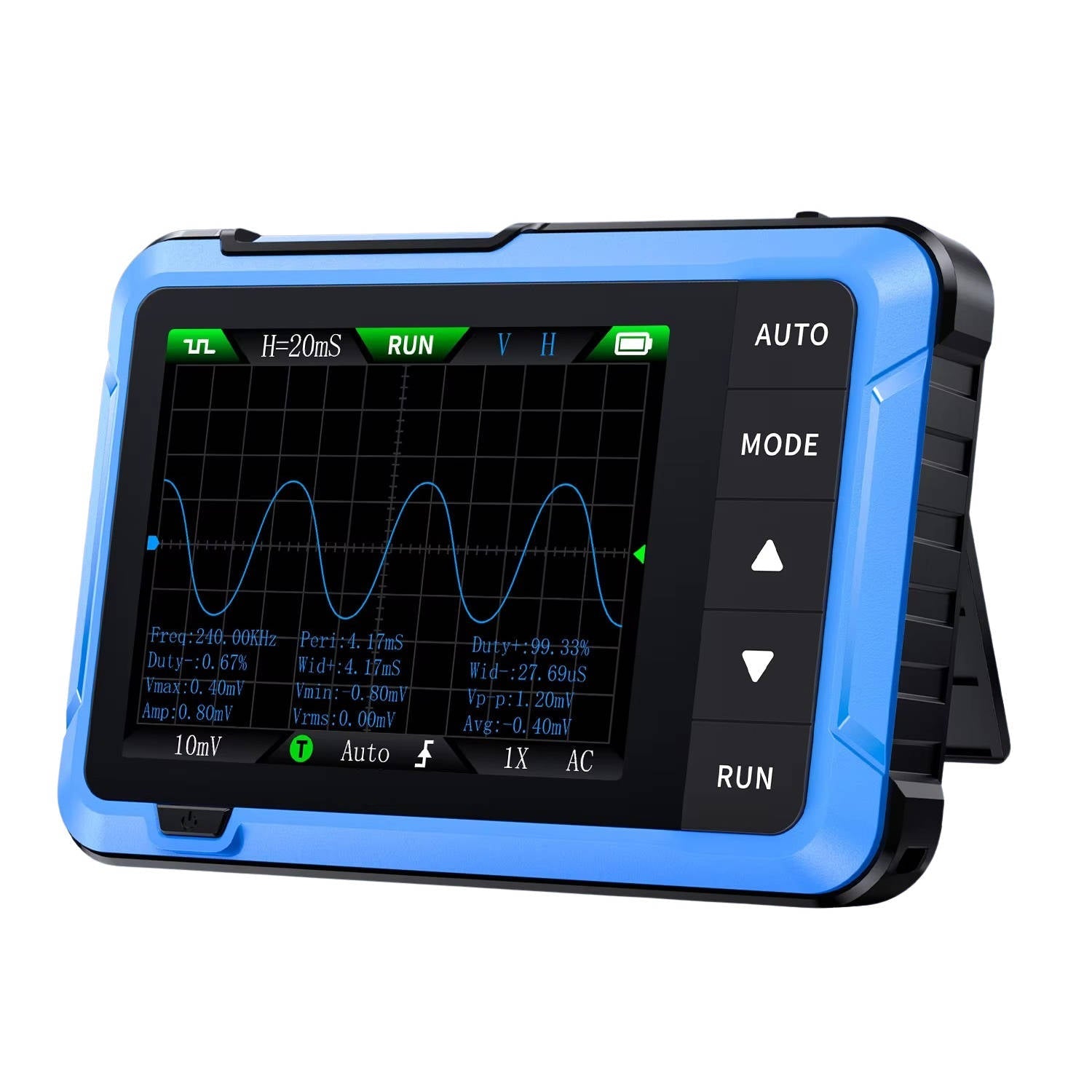

Compact Handheld Digital Scope

Unlock the Power of Portable Digital Oscilloscopes

Are you tired of guessing what's wrong with your circuit? Do you want to take your projects to the next level with precision and ease? Look no further! Our portable digital oscilloscopes are here to revolutionize your workflow. With two models to choose from, you can select the perfect fit for your needs and take your testing capabilities to new heights.

Simply press the AUTO button, and your signal will be displayed on the crystal-clear 2.8-inch screen. Choose from three trigger modes to capture steady patterns or random blips with ease. Both models come with their own signal generator, with the Standard version producing 10,000 test cycles and the Pro version delivering an impressive 50,000.

Whether you're working on a project that requires 5 million snapshots per second or 48 million, we've got you covered. The Pro model handles signals up to 10 million cycles per second, perfect for lab work, while the Standard model's 1 million cycles is ideal for everyday testing. Both models show crystal-clear waves and measure up to 400 volts safely, giving you the precision you need to get the job done.

But that's not all - our scopes work seamlessly with regular waves and digital signals, so you can tackle any project with confidence. They're also super easy to carry around, making them perfect for teaching in class or working in the field. Plus, with four hours of continuous testing and analysis on a single charge, you can work uninterrupted and get more done in less time.

• Get Precise Voltage Measurements: With an advanced ±400V measurement range and protective circuits, you can ensure safe and accurate diagnostics.

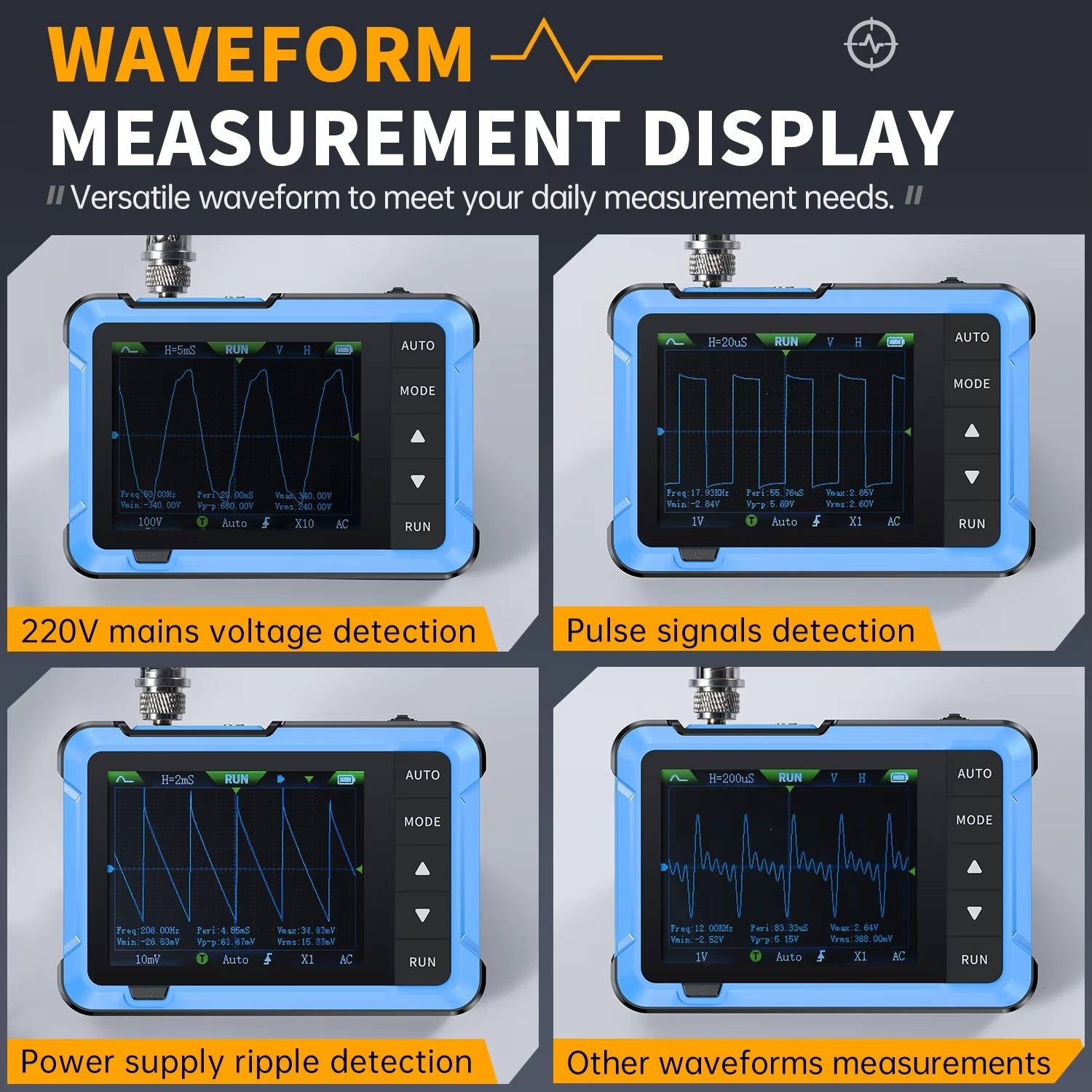

• Analyze Signals with Ease: Our scopes handle both periodic analog and digital signals with professional precision monitoring capability, making it easy to identify issues and make adjustments.

• Real-Time Sampling Rate: Choose from 5MS/s or 48MS/s sampling rates, depending on your needs, and get the data you need to make informed decisions.

• Bandwidth Range: Select from 1MHz or 10MHz bandwidth options, perfect for general testing or high-frequency applications.

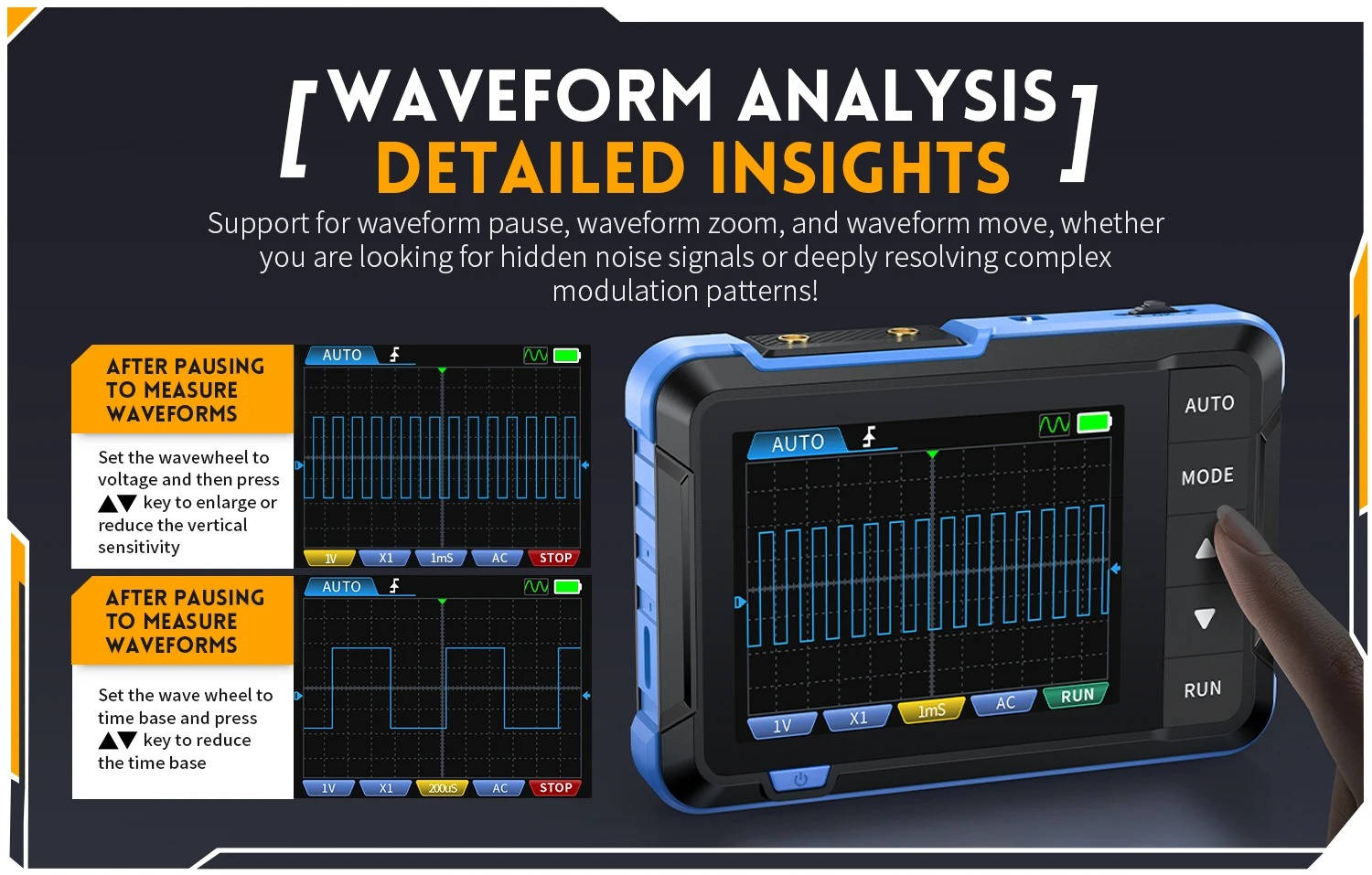

• Instant Auto Capture: With one-click AUTO mode, you can instantly display and adjust waveforms for quick troubleshooting and get back to work faster.

• Professional Display System: Our high-definition 2.8-inch LCD screen delivers crystal-clear 320×240 resolution visualization, making it easy to see what you're working with.

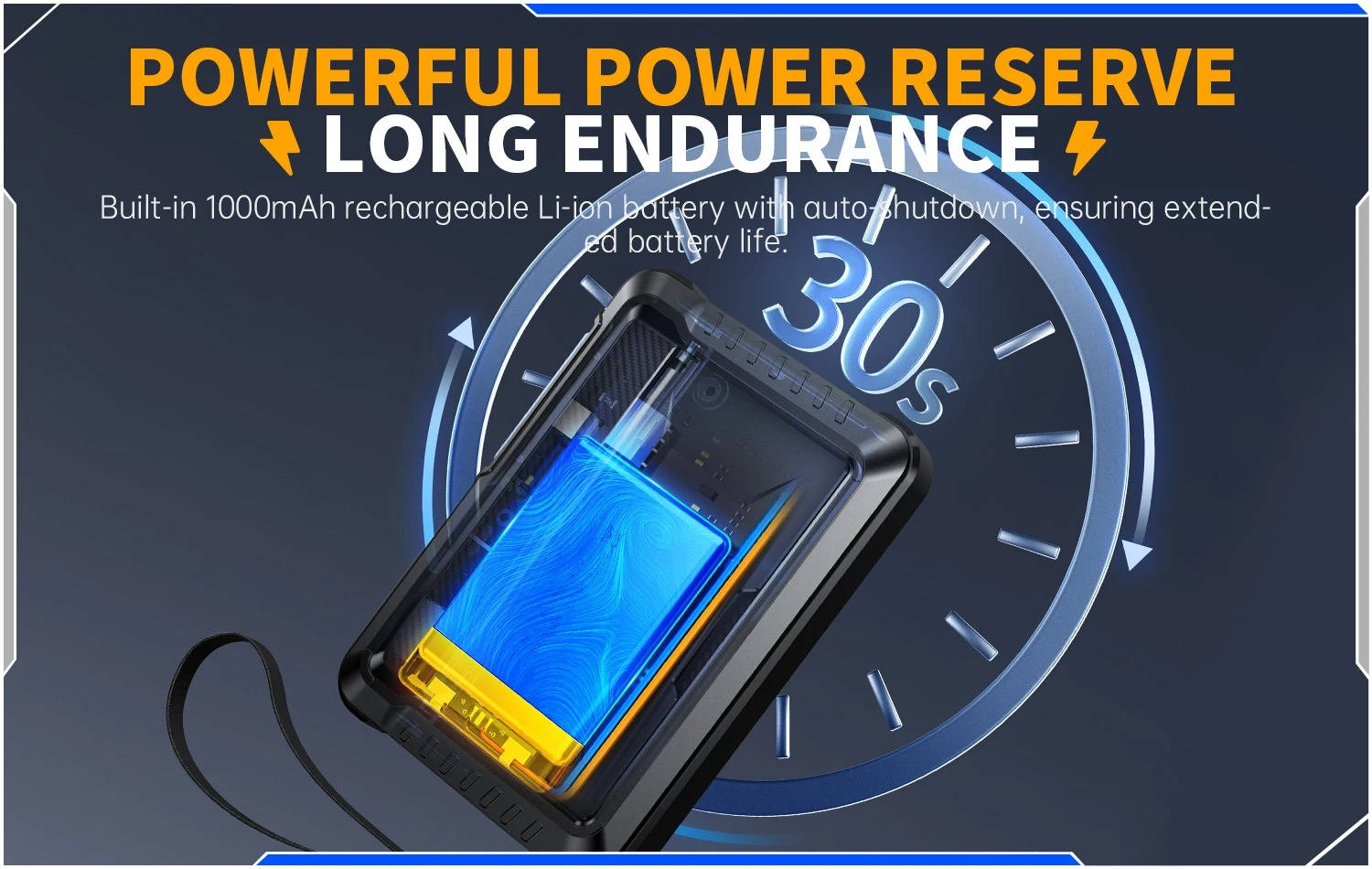

• Extended Field Operation: With a 1000mAh lithium battery, you can enjoy 4 hours of continuous testing and analysis work, so you can stay focused on the task at hand.

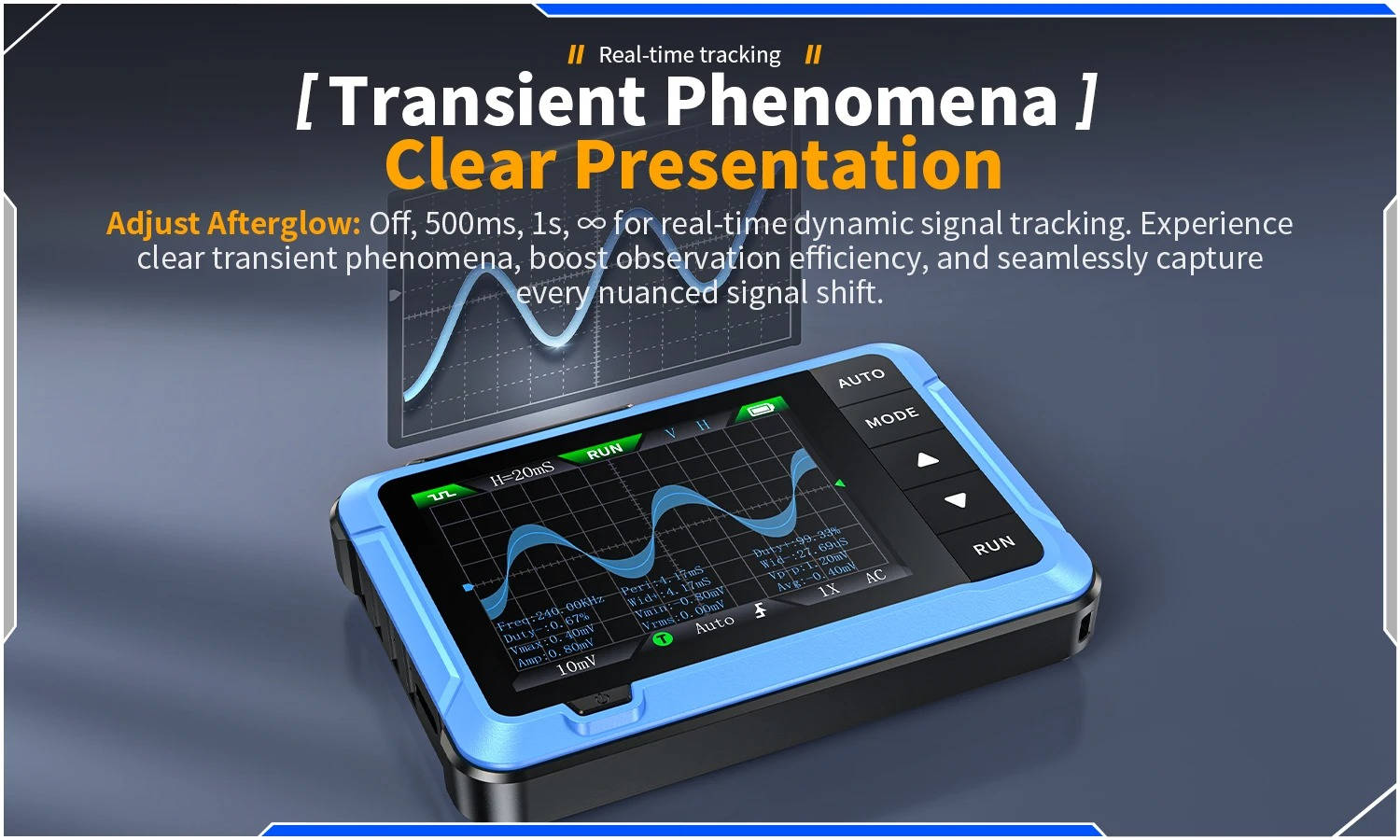

• Advanced Trigger Control: Three precise trigger modes optimize signal capture for maintenance and development applications, giving you the flexibility you need to get the job done.

• Integrated Signal Generator: Our Standard version features a 10KHz signal generator, while the Pro version offers a 50KHz signal generator for comprehensive analysis.

DIGITAL OSCILLOSCOPE PORTABLE SPECS

Base Specifications:

• Display: 2.8 inch LCD

• Screen Resolution: 320×240

• Battery: 1000mAh Lithium

• Operating Duration: 4 hours

• Voltage Range: ±400V

• Trigger Modes: Single/Normal/Auto

• Signal Compatibility: Analog/Digital

• Applications: Maintenance/Education/Development

Balanced and Versatile Option:

• Sampling Rate: 5MS/s

• Bandwidth: 1MHz

• Signal Generator: 10KHz

High-Performance Flagship Model:

• Sampling Rate: 48MS/s

• Bandwidth: 10MHz

• Signal Generator: 50KHz

PACKAGE INCLUDES:

• 1 x Digital Oscilloscope Portable

• 1 x Alligator clip probe

• 1 x Charging cable

• 1 x Lanyard

• 1 x User Manual

• 1 x Packaging color box
