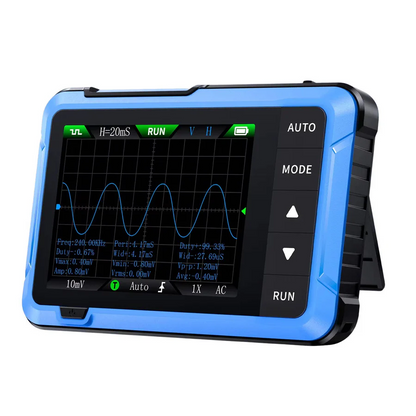

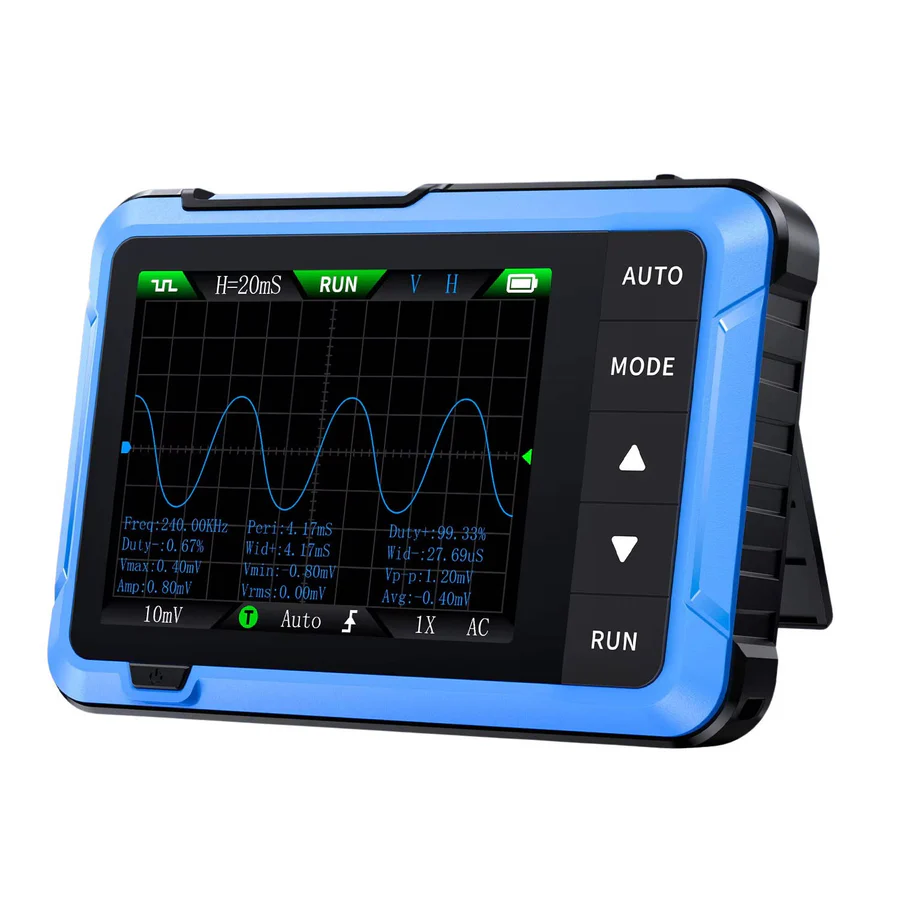

Compact Handheld Oscilloscope for Electronics

Get the Best Compact Testing Capability

Take your circuit testing to the next level with our lightweight and portable digital oscilloscope. Featuring instant AUTO configuration and a vibrant 2.8-inch LCD display, you can quickly capture signals without any wait. Made for professionals and hobbyists alike, this device is perfect for anyone looking for a reliable and easy-to-use testing solution.

Choose the Right Model for Your Needs

Select between our Standard and Pro editions, tailored to meet your specific requirements. The Standard model is perfect for routine diagnostics, while the Pro edition offers elevated sampling rates and bandwidth for more sophisticated testing. With our oscilloscope, you can enjoy accurate and reliable results, whether you're working on a simple project or a complex design.

Dependable and Multifaceted Testing

Both our Standard and Pro models come equipped with an integrated signal generator, can safely measure voltage up to ±400 V, and are powered by a rechargeable battery that lasts for up to 4 hours during continuous use. This means you can work on your projects without worrying about running out of power, and enjoy the flexibility to test a wide range of signals and circuits.

Key Features and Benefits

• Accurate Voltage Measurement: Capable of ±400 V range with circuit safety features, giving you peace of mind when working with high-voltage circuits.
• Real-Time Sampling Rate: 5 MS/s (Standard) or 48 MS/s (Pro) for precise signal acquisition, allowing you to capture even the fastest signals.
• Bandwidth Spectrum: 1 MHz (Standard) or 10 MHz (Pro) designed for high-frequency evaluations, making it perfect for a wide range of applications.
• Quick AUTO Mode: Instantly adjusts settings to display waveforms with a single click, saving you time and effort.
• Bright Display: 2.8-inch LCD with a 320×240 resolution for clear visibility, making it easy to read and understand your results.
• Long Battery Life: 1000 mAh lithium-ion battery enables up to 4 hours of operation, giving you the freedom to work anywhere, anytime.
• Versatile Trigger Modes: Includes Single, Normal, and Auto options for diverse analysis, allowing you to customize your testing to meet your specific needs.
• Integrated Signal Generator: Features 10 kHz (Standard) or 50 kHz (Pro), providing you with a flexible and convenient testing solution.

Product Details

• Display: 2.8-inch LCD
• Screen Resolution: 320×240
• Battery Capacity: 1000 mAh lithium
• Operating Duration: Up to 4 hours
• Voltage Measurement Range: ±400 V
• Sampling Rate: 5 MS/s (Standard), 48 MS/s (Pro)
• Bandwidth: 1 MHz (Standard), 10 MHz (Pro)
• Signal Generator Frequency: 10 kHz (Standard), 50 kHz (Pro)
• Weight: 0.5 lbs

What's Included

• 1 × Portable Digital Oscilloscope

Frequently Asked Questions

Q: What's the difference between the Standard and Pro models?
A: The Standard model provides 5 MS/s sampling with a bandwidth of 1 MHz, while the Pro model offers 48 MS/s sampling and 10 MHz bandwidth, making it perfect for more demanding applications.

Q: How long does the battery last?
A: The integrated lithium battery can provide power for up to 4 hours of steady use, giving you the freedom to work anywhere, anytime.

Q: Can it test both analog and digital signals?
A: Yes, our oscilloscope can test both analog and digital signals, making it a versatile and convenient testing solution.

Q: Is it safe to use with high-voltage circuits?
A: Yes, our oscilloscope can measure voltage safely up to ±400 V, thanks to its built-in safety circuits, giving you peace of mind when working with high-voltage circuits.
